Winters

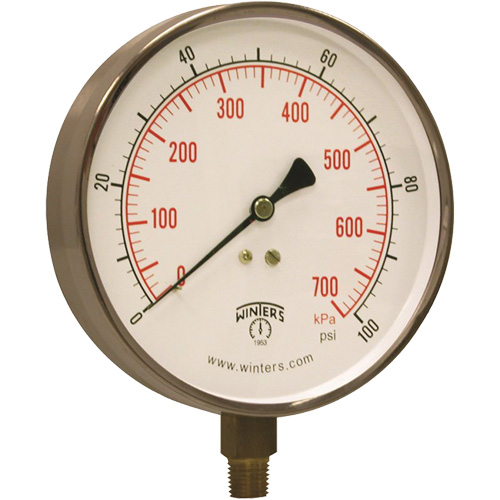

Contractor Pressure Gauge, 4-1/2" , 0 - 100 psi, Bottom Mount, Analogue

Model: YB900

Mfr. Model No.: PCT323

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$67.01 / Each

  • Dial Diameter: 4-1/2"
  • Pressure Range: 0 - 100 psi
  • Connection: Bottom Mount
  • Dial Type: Analogue
  • Connection Thread: 1/4" NPT
  • Accuracy: ±1% ANSI/ASME Grade 1A
  • Manufacturer's Warranty: 5 Years
  • IP Rating: IP52
  • Case & Ring Material: 304 Stainless Steel
  • Lens Material: Acrylic
  • Bourdon Tube Material: Phosphor Bronze
  • Over-Pressure Limit: 25% for Pressures up to 1450 psi (9998 kPa), 15% for Pressures Over 1450 psi (9998 kPa)
  • Working Pressure: Maximum 75% of Full Scale Value
  • Economical stainless steel case gauge with brass wetted parts
  • Zero adjustment screw
  • Restricted orifice
  • ASME B40.100 compliant and CRN registered
  • Also measures in kilopascals (kPa)
  • Applications include commercial air, water and steam services (with syphon), and more
