Topring

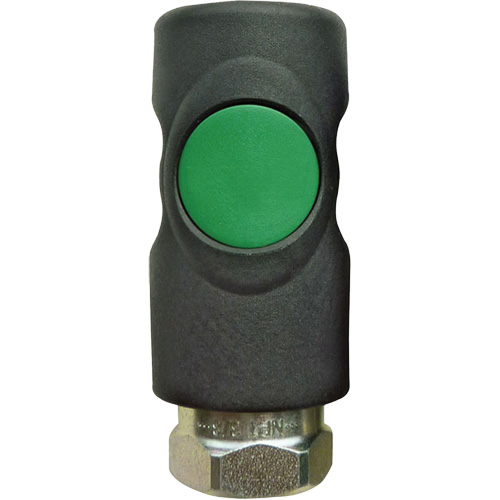

TOPQUIK S1 Ultraflo 7.8 mm Quick Coupler, Polyester Composite/Stainless Steel, 1/4", Female NPT, 174 PSI

Model: UBA296

Mfr. No.: 31.715

  • TOPQUIK S1 Ultraflo 7.8 mm Quick Coupler, Polyester Composite/Stainless Steel, 1/4", Female NPT, 174 PSI Ottawa Fastener Supply

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$64.70 / Each

0 In Stock - Off-Site Warehouse

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

Material

Polyester Composite/Stainless Steel

Coupler Size

1/4"

Thread

Female NPT

Maximum Operating Pressure

174 PSI

Rotation Capacity

Continuous

Max. Angle Of Rotation

360°

Nominal Airflow Rate

73 SCFM

Fluid Temperature

-15°C to 70°C

Inlet Connection Type

Threaded

Outlet Connection Type

Automatic, Ultraflo

Disconnect Mode

Zero Pressure

Colour

Black, Green

Seal Material

Nitrile/NBR

Country Of Origin

France

  • The green button on this model indicates compatibility with Euro (Ultraflo) profile plugs
  • This automatic coupling provides immediate downstream pressure release, ensuring safe zero-pressure disconnection
  • Silicone-free, it eliminates any risk of compressed air contamination, making it perfectly suited for painting and finishing applications
  • Its composite sleeve protects delicate surfaces from scratches, while the robust design offers exceptional resistance to abrasion, vibration, corrosion, impacts, and crushing
  • Fully leak-proof, it helps reduce energy costs
  • The swivel body allows quick installation and optimal positioning, complemented by a ball locking mechanism for a secure and reliable connection
