Lutz

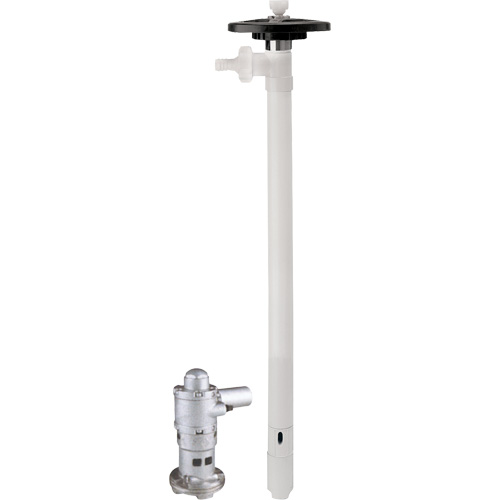

Air Drum Pumps, 32 GPM

Model: DB822

  • Air Drum Pumps, 32 GPM Ottawa Fastener Supply

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$2,830.00 / Each

Max. Flow Rate

32 GPM

Max. Head

22'

Pump Tube Material

PVDF

Bearings

PTFE

Gravity

1.2

Specific Viscosity Cps

600

Wt. Lbs.

12

  • Examples of Liquids: Highly concentrated acids and alkalis, bromic acid, hydrobromic acid, chloroform, dimethyl phthalate, hydrofluoric acid, potassium bromate, sodium perchlorate, phosphoric acid 95%, nitric acid, etc. ; DRUM PUMPS: Sealless pumps suitable for pumping clean, dirty thin bodied, slightly viscous, aggressive and non-aggressive liquids out of drums and containers. Pump tube is non-lubricated, thus preventing contamination of the liquids pumped. Comes with 39" pump tube and stainless steel or Hastelloy C drive shaft. Models DB823, DB824, DB825 and DB826 come with mechanical seal. NOTE: Only DB837 and DB829 can be used for flammable liquids and include static kit. ; ; B. Compressed air motor: 220 W, 1/3 HP, operating pressure is 87 PSI Note: Models DB838, DB816, DB821, DB822, DB829, and DB830 come with Hastelloy C drive shaft. ; Pumps that have a stainless steel construction come with a wall hanger, 10 ft. bonding wire and 26' grounding wires. ; Pumps that have a polypropylene construction come with a barrel adaptor, a wall hanger, 8' PVC hose and hose c-clamps (except DB827).
