Lincoln Electric

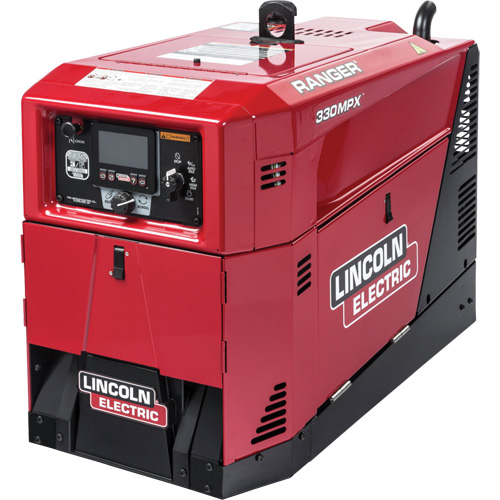

Ranger® 330MPX Welder/Generator Engine Drive (Kohler®)

Model: TTV725

Mfr. No.: K3459-1

  • Ranger® 330MPX Welder/Generator Engine Drive (Kohler®) Ottawa Fastener Supply

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$18,515.00 / Each

0 In Stock - Off-Site Warehouse

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

Dimensions

26"x 20"x 36 in

Net Weight

446 lbs (202 kg)

Machines Processes

Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)

IEC Rating

292A/31.7V/100% @ 104°F (40°C)

Max Rating

330A/28V/100% @ 104°F (40°C)

Output Range By Mode

CC-Stick: 35 – 330 A, Downhill Pipe (CC): 25-330 A, Touch Start TIG: 25 – 330 A, CV-Wire: 14 – 40 V, Arc Gouging: 90 – 330 A

Single Phase Auxiliary Output

10,000 Watts Continuous, 120/240V

Auxiliary Output Frequency

60 Hz

Rated Gouging Carbon Diameter

3/16"(5.0 mm)

  • Premium welder/generator with excellent multi-process capability for stick, TIG, MIG, gouging, and pipe applications
  • Has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class
  • It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site
  • Digital user interface offers a suite of advanced technology that improves weld performance and productivity
  • Up to 60% quieter than other machines in its class to enhance safety and comfort in the workplace
  • Ready.Set.Weld® technology' intuitive push-and-turn digital controls make setup a breeze
  • Chopper Technology® provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance
  • ArcFX™ Technology provides instant graphical feedback on how settings affect the weld outcome
  • CrossLinc™ Remote Technology communicates voltage control to the welding power source through one common weld cable
  • Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruption
  • Plenty of power at 330A/28V for 100% duty cycle to weld 1/4" 7018 electrode
  • The maintenance screens allows the machine to record engine hours for proper service and maintenance
  • Enable the supervisor and operator passcode protection to lock settings and weld modes
  • Engine Driven Weld Modes include downhill pipe, touch-start pulse TIG, and pulse spool gun
  • Kohler® OHV Command CH740 2-cylinder air-cooled gasoline engine
