Lincoln Electric

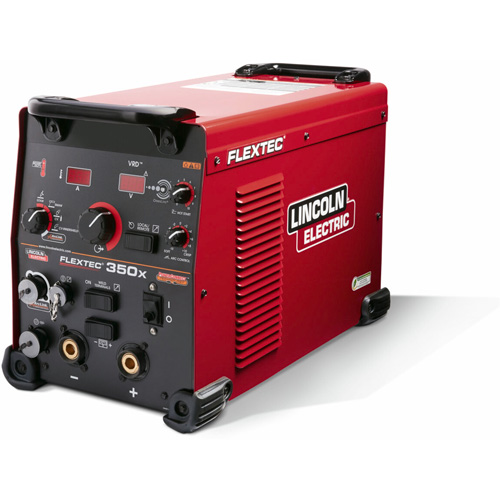

Flextec® 350X PowerConnect® Multi-Process Power Source, 200 V/600 V, 1 Ph/3 Ph, 50/60 Hz

Model: TTV749

Mfr. No.: K4273-1

  • Flextec® 350X PowerConnect® Multi-Process Power Source, 200 V/600 V, 1 Ph/3 Ph, 50/60 Hz Ottawa Fastener Supply

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$13,480.00 / Each

For Use With

  • Cross Country Pipeline, Construction & Field Erection, General Fabrication, Heavy Equipment, Heavy Fabrication, Structural Fabrication

Includes

  • 8.5ft 4 Conductor/ 8 AWG Input Power Cable, Flextec® 350X Empty 4-Pack Rack (K3400-2)

Manufacturer's Warranty

  • 3 Years

Voltage Input Power

200 V/600 V

Phase Input Power

1 Ph/3 Ph

Hertz Input Power

50/60 Hz

Dimensions (H X W X D)

17" x 13" x 24" (432 mm x 330 mm x 609 mm)

Weight

84 lbs. (38.1 kg)

Max. Rating

425 A

Output Range By Mode

5-425

Wire Feeder Supply Voltage

40 VDC

  • PowerConnect allows for Automatic connecting to any incoming voltage 200-575VAC, single or three-phase, 50 or 60Hz
  • Built in pulse programs for carbon steel stainless steel, metal core and aluminum. Requires use of a Power Feed ArcLink wire feeder
  • Ultimate process flexibility
  • Supports MIG, TIG, Stick, FluxCored and Carbon Gouging
  • Supports CrossLinc wire feeders, 14-pin analog wire feeders, 5-pin ArcLink digital wire feeders
  • Based on the same proven platform as the previous Flextec machines and lab and field tested to perform in extreme environment
  • Supports 14-pin and 5-pin (ArcLink) wire feeders as well as CrossLinc and Across-the-Arc
