King Canada

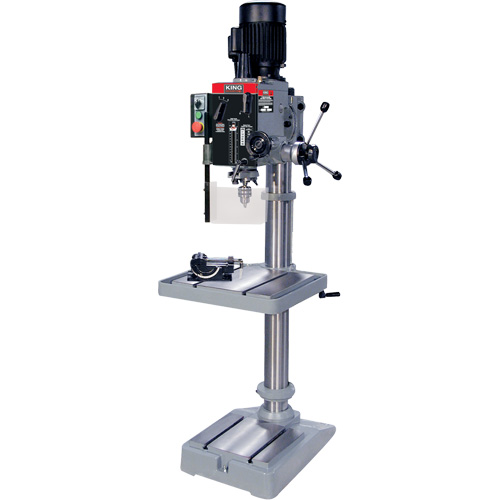

Gearhead Drilling Machine, 1/2" Chuck, 6 Speed(s), 19-1/2" W x 21-3/4" L, #3 Morse

Model: TMA005

Mfr. Model No.: KC-40HS-6

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$6,896.00 / Each

  • Chuck Size: 1/2"
  • Speeds: 6
  • Table Dimensions: 19-1/2" W x 21-3/4" L
  • Spindle Taper: #3 Morse
  • Drilling Capacity: 1-1/4"
  • Max. Distance Spindle Nose to Table: 22"
  • Max. Distance Spindle Nose to Base: 47"
  • Swing: 20-7/16"
  • Spindle Stroke: 5"
  • Diameter of Column: 4-1/2"
  • Face Mill Capacity: 4"
  • End Mill Capacity: 3/4"
  • Motor: 2 Amps
  • Safety guard with limit switch protection
  • Magnetic line interruption switch needs a restart after a power failure
  • Spindle is equipped with four heavy-duty tapered roller bearings
  • Powerful 1.5 HP motor
  • Forward and reverse switch
  • Includes: 1/2" chuck with key, 3-1/2" angle vise, Safety guard
