Hill Pumps

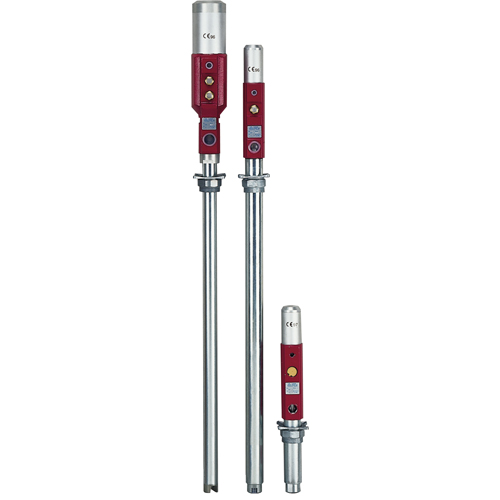

Heavy-Duty Air Operated Oil Pumps, 5:1 Pressure Ratio

Model: DA943

Mfr. No.: 15771

  • Heavy-Duty Air Operated Oil Pumps, 5:1 Pressure Ratio Ottawa Fastener Supply

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,679.00 / Each

Pressure Ratio

5:1

Type

AIR INLET BSP 3/8" - PUMP OUTLET BSP 1"

Pressure Ratio

5:01

Flow L/min

35

Pump Inlet" BSP

1

Uptake Length"

8

Wt. Lbs.

14

Country Of Origin

United Kingdom

  • WARNING! Before ordering any pump, establishing compatibility with the MSDS of the fluid used in application is a must!; ; Designed for the transfer of higher viscosity fluids and/or fluid transfer over longer distances, ideal for drums, tanks or wall mounting (mounting bracket is optional). Mounted pumps are connected to the tank via a suction hose (hose not included). Maximum air pressure 10 bar, minimum air pressure 3 bar. Flow is based on motor oil SAE 10-30 at 20°C air pressure 7 bar free outlet. Maximum viscosity 2000 centistrokes at a reduced flow.
